Newest type LC1-D115 ac contactor

 Newest type LC1-D115 ac contactor

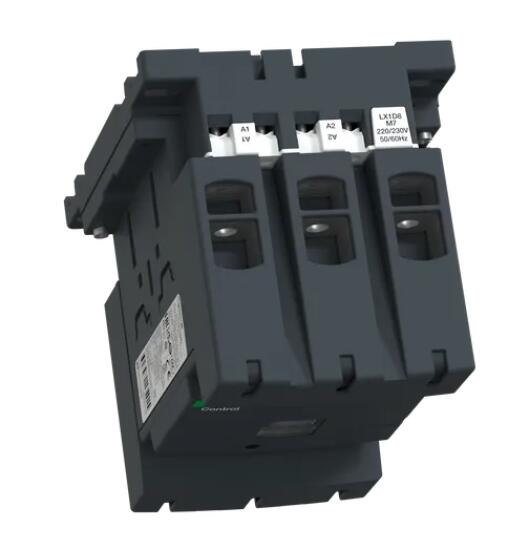

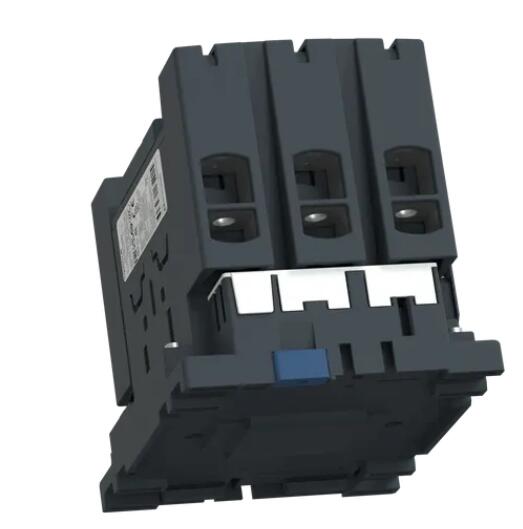

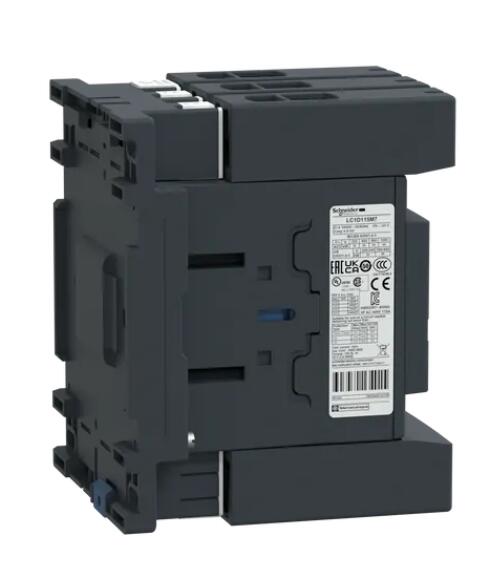

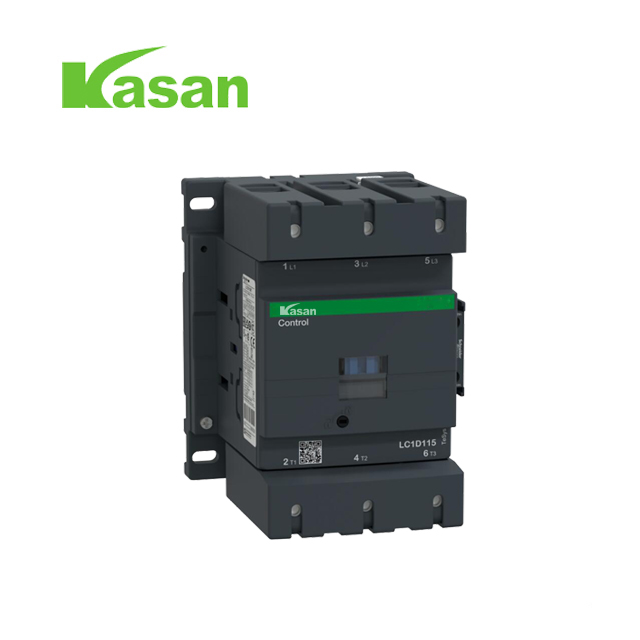

LC1D115 Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing.

TeSys LC1-DN Electric Ac Contactors to Control Motors Features

As the best-selling line of contractors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.TeSys D contactors leverage over 100 years of experience and innovation to control your motors.

TeSys LC1-DN Electric Ac Contactors to Control Motors Specifications

AC & DC Coils 50/60 Hz available for a whole range

DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A

DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
