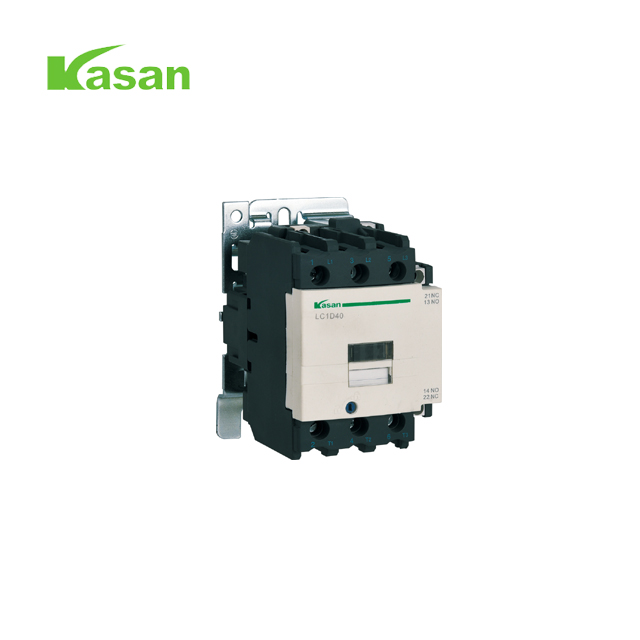

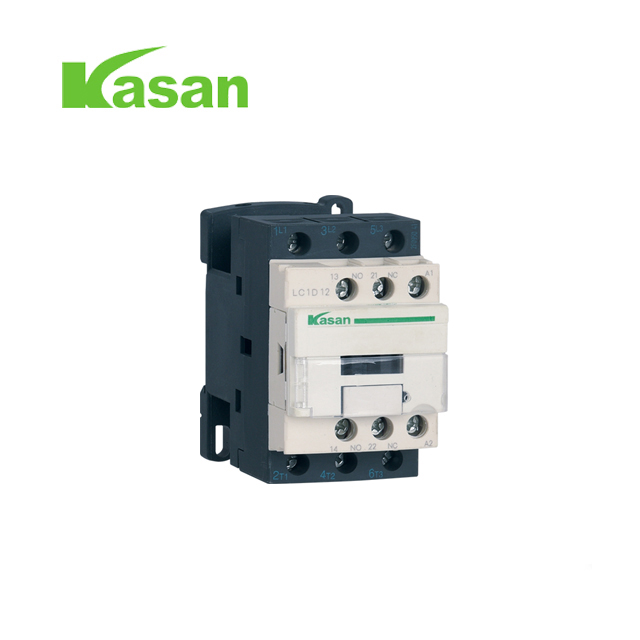

LC1D Electric Ac Contactors

LC1D Electric Ac Contactors to Control Motors Application

TeSys LC1-D electric AC contactors to control motors is suitable for frequency 50 / 60HZ , rated insulation voltage up to1000V , rated operation current 9-150A under AC-3 duty . It is mainly used for making / breakingelectric circuits at a long distance for frequent starting / stopping & controlling AC Motors . Itused in combination with thermal relay to compose a magnetic motor starter . The products comply with IEC60947-4-1 standard

TeSys LC1-D Electric Ac Contactors to Control Motors Features

As the best-selling line of contractors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.TeSys D contactors leverage over 100 years of experience and innovation to control your motors.

TeSys LC1-D Electric Ac Contactors to Control Motors Specifications

AC & DC Coils 50/60 Hz available for a whole range

DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A

DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil

Various types of connection available:

• Screw clamp terminals
• Everlink (40 to 80 A)
• Spring terminals (9 to 38 A and on control terminal up to 65 A)
• Lugs terminals
• Faston terminal (9 to 12 A)

High making and breaking capacity

1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors

Safety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1

Up to 30 million mechanical operation cycles

Electrical cycles up to 3600 cycles per hour at ambient temperature

No derating up to 3000 m altitude

Wide range of working temperature: -25°C to 60°C

TeSys LC1-D Electric Ac Contactors to Control Motors Benefits

TeSys LC1-D electric AC contactors to control motorss can offer a quick simple setup, while maintaining a compact size. These contractors can provide multiple advantages, including:

Safety

• Safe and long-lasting power connection with Everlink and spring terminals
• Suitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)
• Identification of safety chain with a red cover and auxiliary contact
