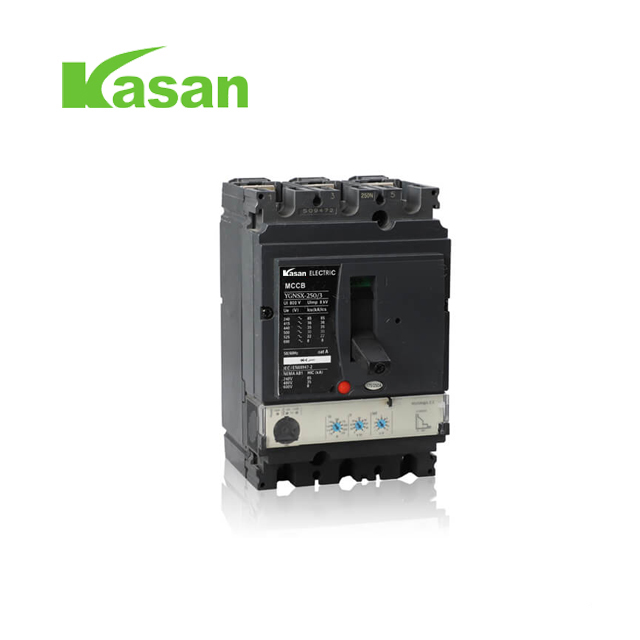

NSX Molded Case Circuit Breakers

compact NSX molded case circuit breakers is a full range of high-performance molded case circuit breakers (MCCB) in 2 frame sizes designed to meet your needs from thermal-magnetic to advanced MicroLogic trip units. This range features integrated earth leakage protection.

Up to 630A

Compact NSX Molded Case Circuit Breakers Product details

Compact NSX Molded Case Circuit Breakers Features

The ComPact NSX molded case circuit breaker (MCCB) range is designed to optimize space and breaking capacity. The range comes in two frame sizes with a variety of optional functions and accessories.

Compact NSX Molded Case Circuit Breakers Specifications:

Flexible installation: any position; switchboard or wall-mounted

Nominal current: 16 to 630 A

9 Breaking capacities for the 2 sizes of circuit breakers: – up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V – up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V – both size of circuit breakers with 75 & 100 kA at 690 V

1, 2, 3, and 4 pole versions available

Large range of electronic and thermal-magnetic protections

Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi

Interchangeable trip-units to upgrade your panel with smarter functions

Plug and ready wiring system and communicating accessories

A wealth of options for auxiliaries and accessories (field installable)

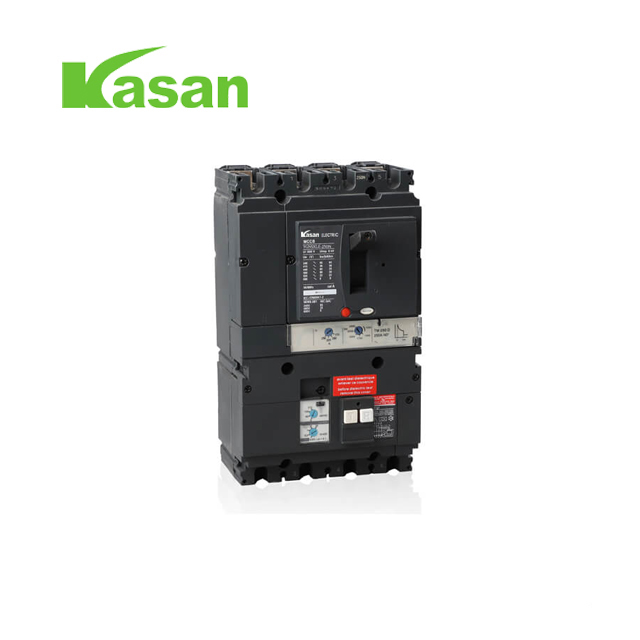

Integrated earth leakage protection via MicroLogic Vigi (earth leakage circuit breaker – ELCB)

Benefits

Easy and efficient

• Two standardized frame sizes for your convenience
• Save space, time, and effort with integrated earth leakage protection (ELCB), in the molded case circuit breaker (MCCB) frame size
• Easy to swap trip units and standardized accessories over time
• Wide range of online and offline software tools that help to improve productivity at all stages of your project (Product Selector, EcoStruxure Power Design – Ecodial, EcoStruxure Power Build – Low Voltage, EcoStruxure Power Commission)

Optimize safety

• Highly resistant to environmental stresses
• Roto-active breaking technology helps to reduce early aging effects and increase operation lifespan

Measure and Communicate

• Local and remote communication with trip alarm (earth leakage, overload, short circuit) and pre- alarms (earth leakage) allowing you to proactively increase operational and energy efficiency
• Advanced MicroLogic trip unit can assist in providing corrective, preventative, and predictive maintenance and energy management to identify potential savings

Working with communication devices, the ComPact NSX inside our Smart Panels becomes an EcoStruxure connected product within our EcoStruxure Power architecture.

Compact NSX Molded Case Circuit Breakers Applications

An excellent choice for all standard and specific applications, including:

• Standard applications: industries, buildings, infrastructures
• Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers
• Source-changeover systems (TransferPact): service sector (hospital operating rooms, computer rooms, ), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.)

Ensures compliance with international standards :

• IEC/EN 60947-1 and 2, IEC 60068-2-30 for type 2 tropicalisation, CCC, EAC, and other local certifications
• Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas and RINA
